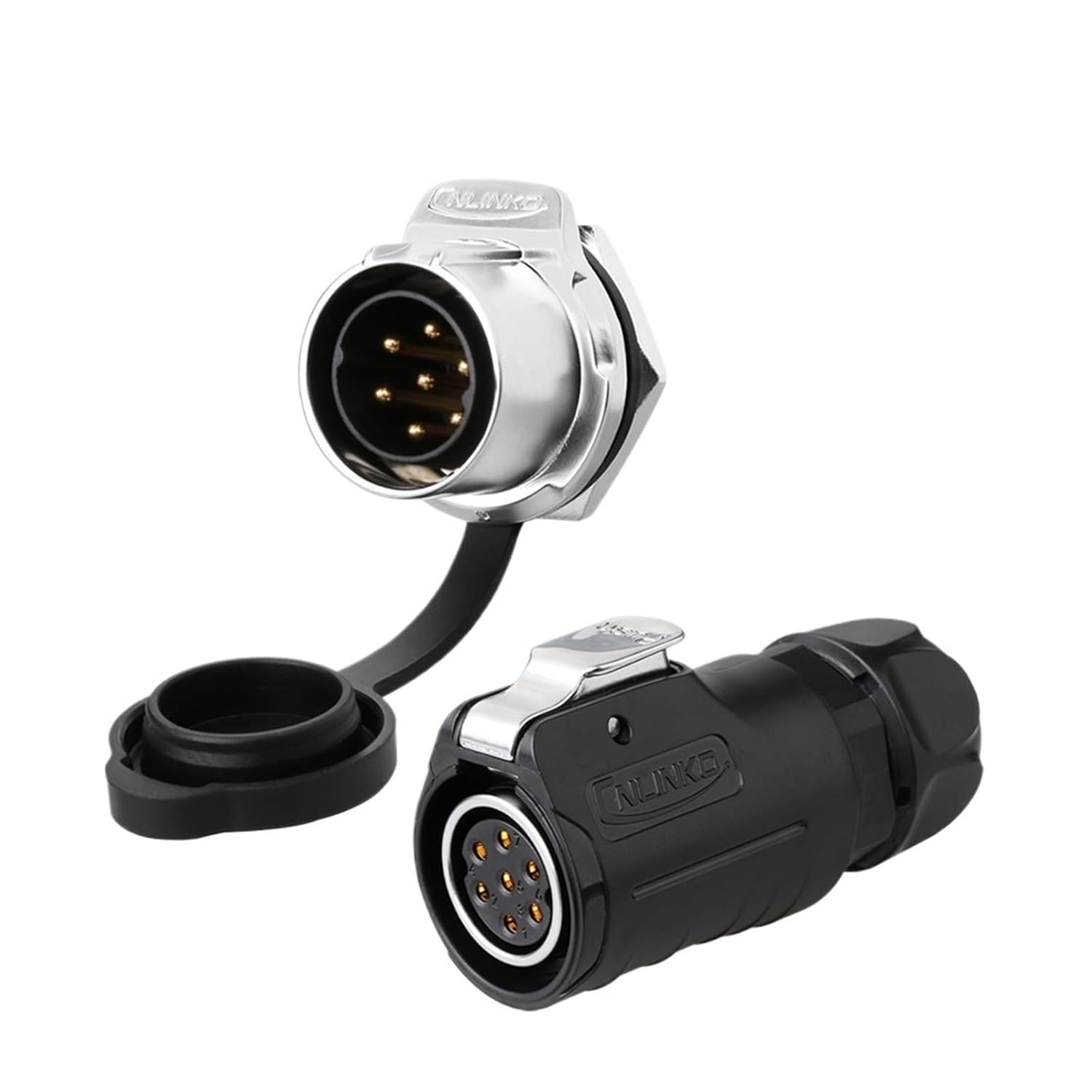

1Pcs LP20 Waterproof Electrical Circular Connector Single Hole Mount Bulkhead IP68 Waterproof Soldering Wire Quick Connector(5 Pin Female Set)

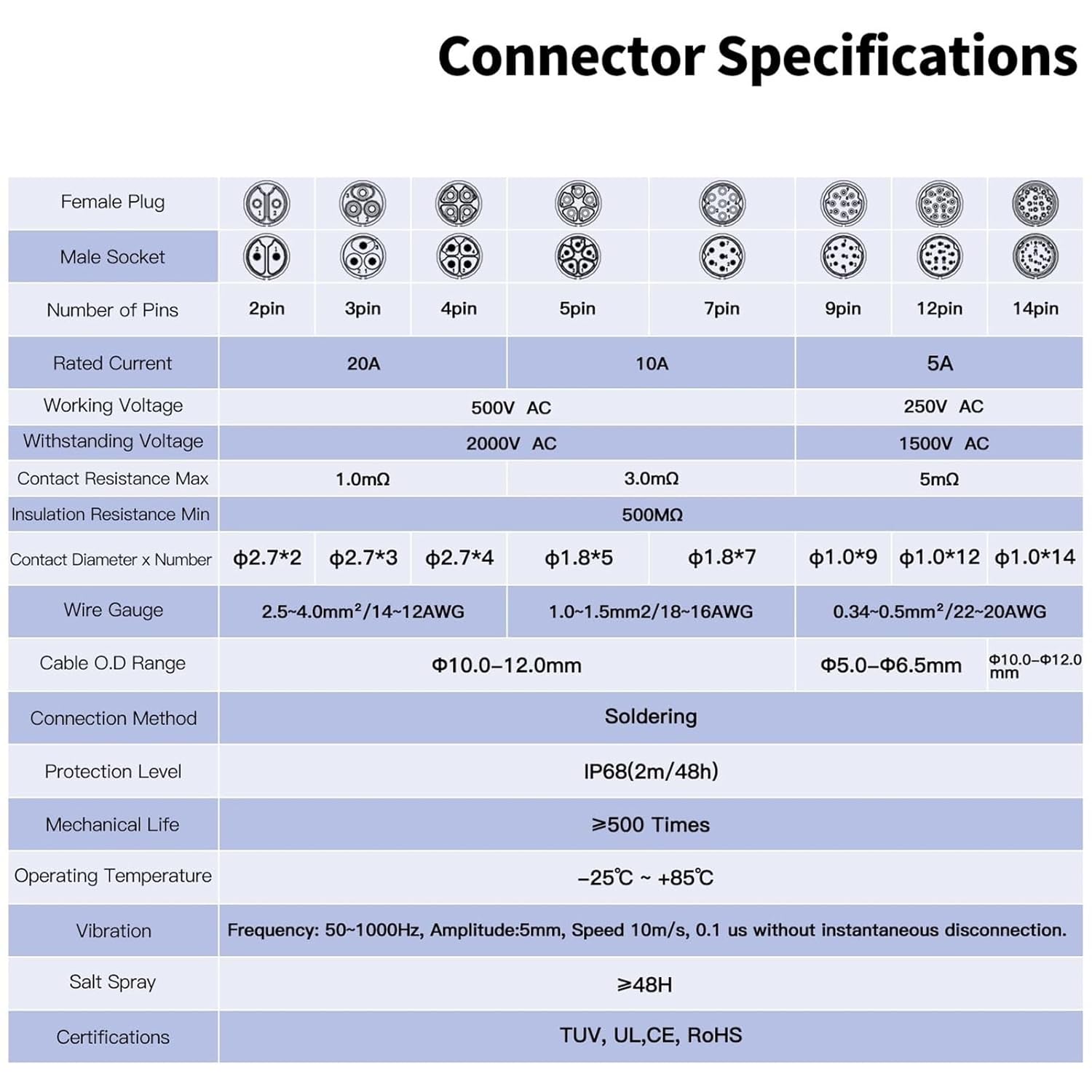

Electrical ConnectorLP20 Waterproof Electrical Circular Connector Single Hole Mount Bulkhead IP68 Waterproof Soldering Wire Quick ConnectorFeatures:IP68 Waterproof RatingWith an IP68 waterproof rating, this connector can withstand extreme conditions, making it ideal for outdoor applications. MaterialThis connector boasts durability and longevity, ensuring reliable performance in various environments.Easy InstallationFeaturing a single hole mount design, this connector offers a quick and easy installation process, saving you time and effort.Soldering Wire Quick ConnectorThe soldering wire quick connector feature ensures efficient connections, enhancing the overall functionality of your electrical setup.==========Hign-concerned Chemical : NoneModel Number : LP20 bulkhead connectorCable Specification(2~4pin) : 2.5~4.0mm²/14-12AWGDiameter Range(2~7/14pin) : OD 10.0~12mmRated Current : 5A~20AOperating Voltage : 250V-500V ACContact Resistance(Max.) : 1~5m OmegaInsulation Resistance(Min.) : 500M OmegaProtection Level : IP68Working Temperature : -25~+85 Degree CentigredeConnecting Mode : Screw ConnectorSoldering : Easy Locking TypeAssembly style : SolderingColor : BlackFeatures : BulkheadCable Specification(5~7pin) : 1.0~1.5mm²/18-16AWGCable Specification(9~12pin) : 0.34~0.5mm²/22-20AWGDiameter Range(9~12pin) : 5.0-6.5mmConnector type : Panel connector

• LP20 Waterproof Electrical Circular Connector Single Hole Mount Bulkhead IP68 Waterproof Soldering Wire Quick Connector
