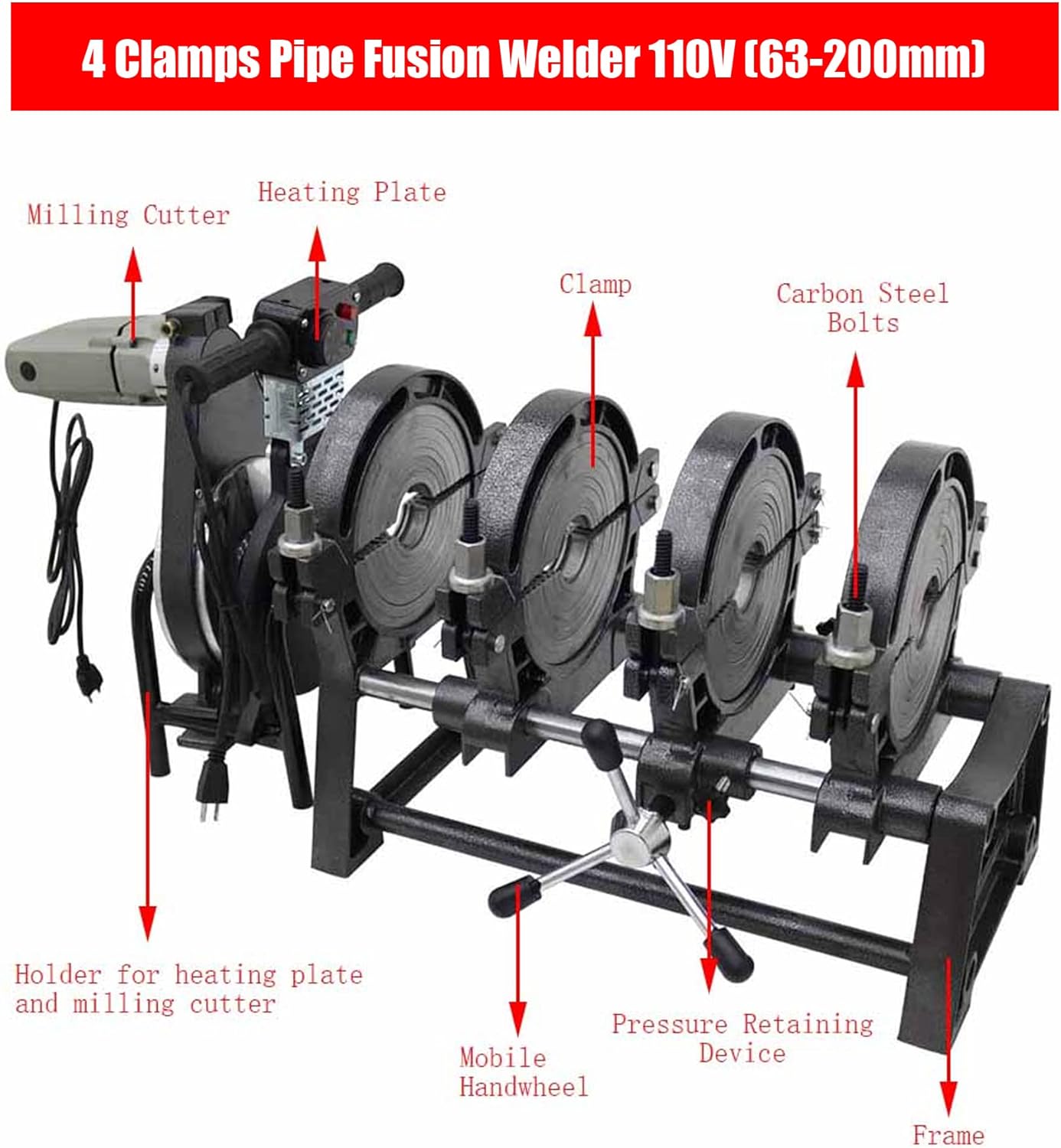

63-200mm HDPE Butt Fusion Welding Machine Pipe Fusion Welder PE PP PB PVDF Pipe Hot Melt Machine 110V Manual 4 Clamps

HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factoryItem:145021

• 【PARAMETER】Model No.:2.48"-7.87" (63-200mm) 4 rings manual; Welding level(Φ, mm)outer dia: 63mm(2.48”)、75mm(2.95")、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”); Voltage: 110V; Power of Heater: 2.5KW; Power of Milling Cutter:1.1KW; Docking deviation: ≤0.3mm; Time required to reach soldering temperature:<20min; Materials can be welded:PE PP PB PVDF

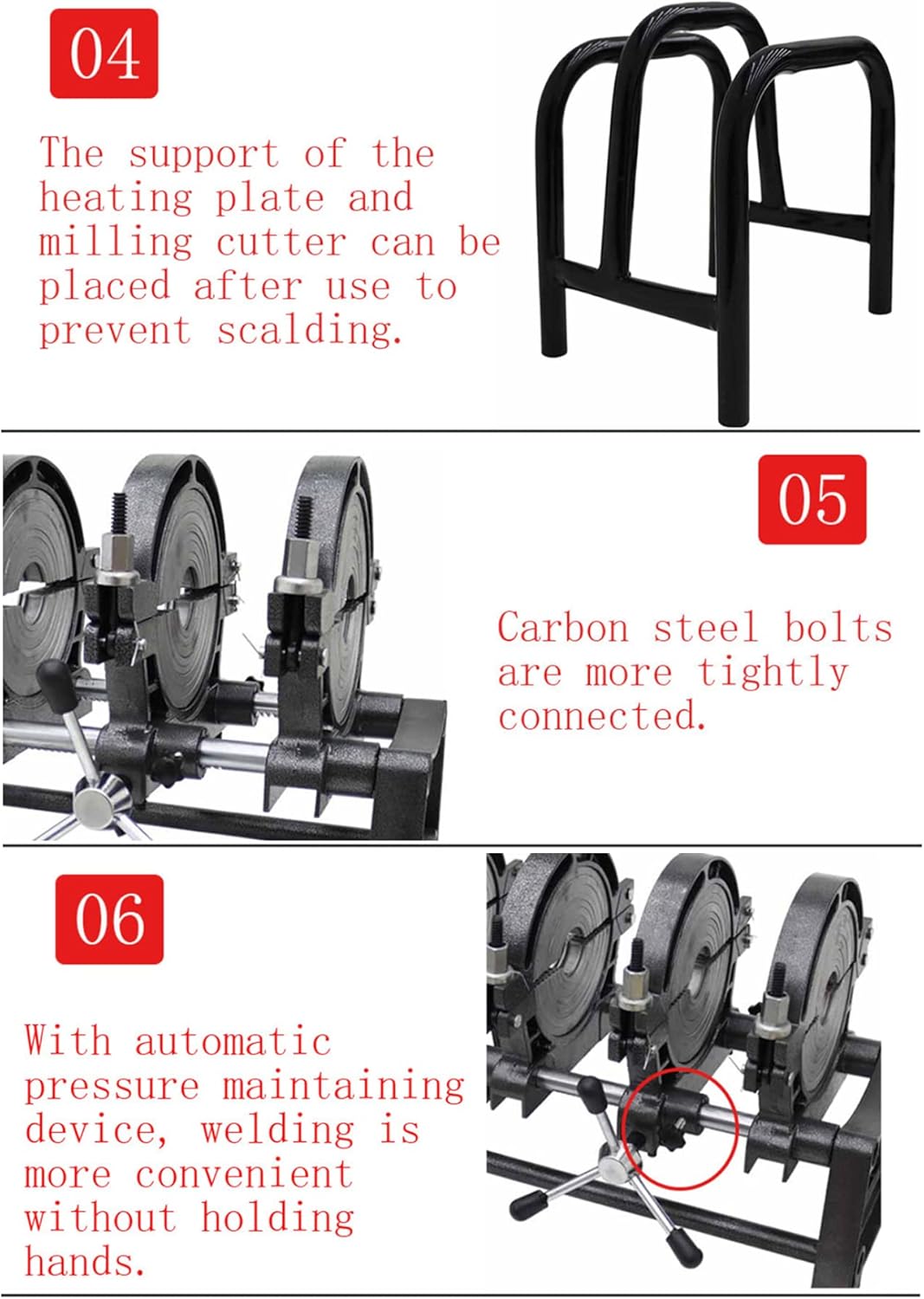

• 【FEATURED DESIGN】Widen and thickened clamp,more stable during welding.Carbon steel bolts are tightly connected.
• 【STABLE】lengthened and thickened frame,better bearing and more stable.
• 【EASY TO USE】The support of the heating plate and milling cutter can be placed after use to prevent scalding.

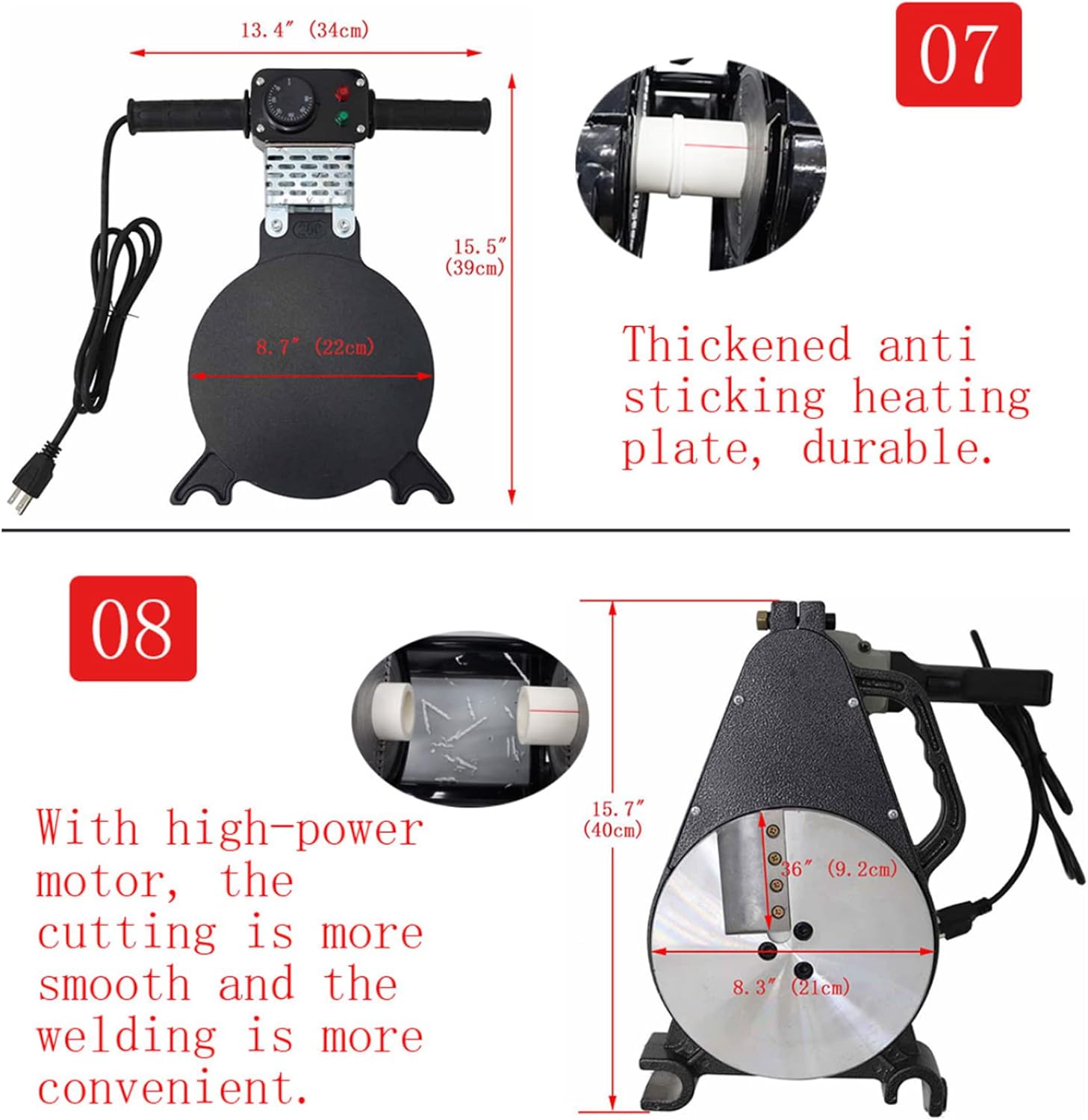

• 【HIGH-POWER】Thickened anti sticking heating plate,durable.with high-power motor,the cutting is more smooth and the welding is more convenient.
