63Amp AC110V Automatic/Manual Transfer Switch 3P 50/60Hz, 3POLE 63A Mini ATS Solar Auto Dual Power Switch W2R for Home Generator, Din Rail Mount Cn Automatic Changeover Fast Transfe for,Rv,Lv Power
4.3 (138 items)
Limited Time SaleUS$25.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215636343 | Release Date | 2026/04/12 | List Price | US$16.80 | Model Number | 215636343 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Functions and Features: 63a 3p dual power auto transfer switch W2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 0.05 seconds to ensure the continuity, reliability and safety of power supply. When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply. Both power supply A and power supply B can be connected to the mains/generator/photovoltaic, with four wiring
- Automatic Mode: mini ats 3 pole 110v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A. When the normal power source A is working normally, A (red light) is always on; when the normal power source A is abnormal, A (green light) goes out and switches to the automatic power source B within 0.05 seconds, and B (green light) is on. When the normal power source A returns to normal, it will automatically switch from the backup power source B to the normal power source A.
- Manual Mode: ats automatic manual transfer switch 3p ac 110v 3pole 63 amps use manual mode to make sure the left switch is in Manual. If you choose power source A, operate the red switch handle on the right to point to Sonrce A, and LED indicator A (red light) will be on. If you choose power source B, manually operate the red switch handle on the right to point the switch to Source B, and LED indicator B (red light) will be on.
- 110V Over-Voltage and Under-Voltage Protection: cnc ats 63 amp automatic transfer switch 110v designed for home track installation, dedicated to PZ30 distribution box. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 63A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V). Please select the product with the corresponding specifications according to the actual working voltage you need
- Wide Application: This 3p dual power ATS ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators
- Quality assurance and worry-free after-sales: automatic transfer switch 63 amp made of high-quality PA6, it has high strength, high temperature resistance; it is lightweight but sturdy. we provides a 30-day no-reason return and a 3-year warranty for this product to ensure that you have a worry-free shopping experience. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to contact us.
| Model | ATS 3P 63A AC110V |
|---|---|
| Terminal | Clamp |
| Brand Name | IGEYAPA |
| Switch Type | Toggle |
| Circuit Type | 3-way |
| Contact Type | Normally Open |
| Manufacturer | IGEYAPA |
| Material Type | Acrylonitrile Butadiene Styrene, Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 63 Amps |
| Operation Mode | Automatic, Manual |

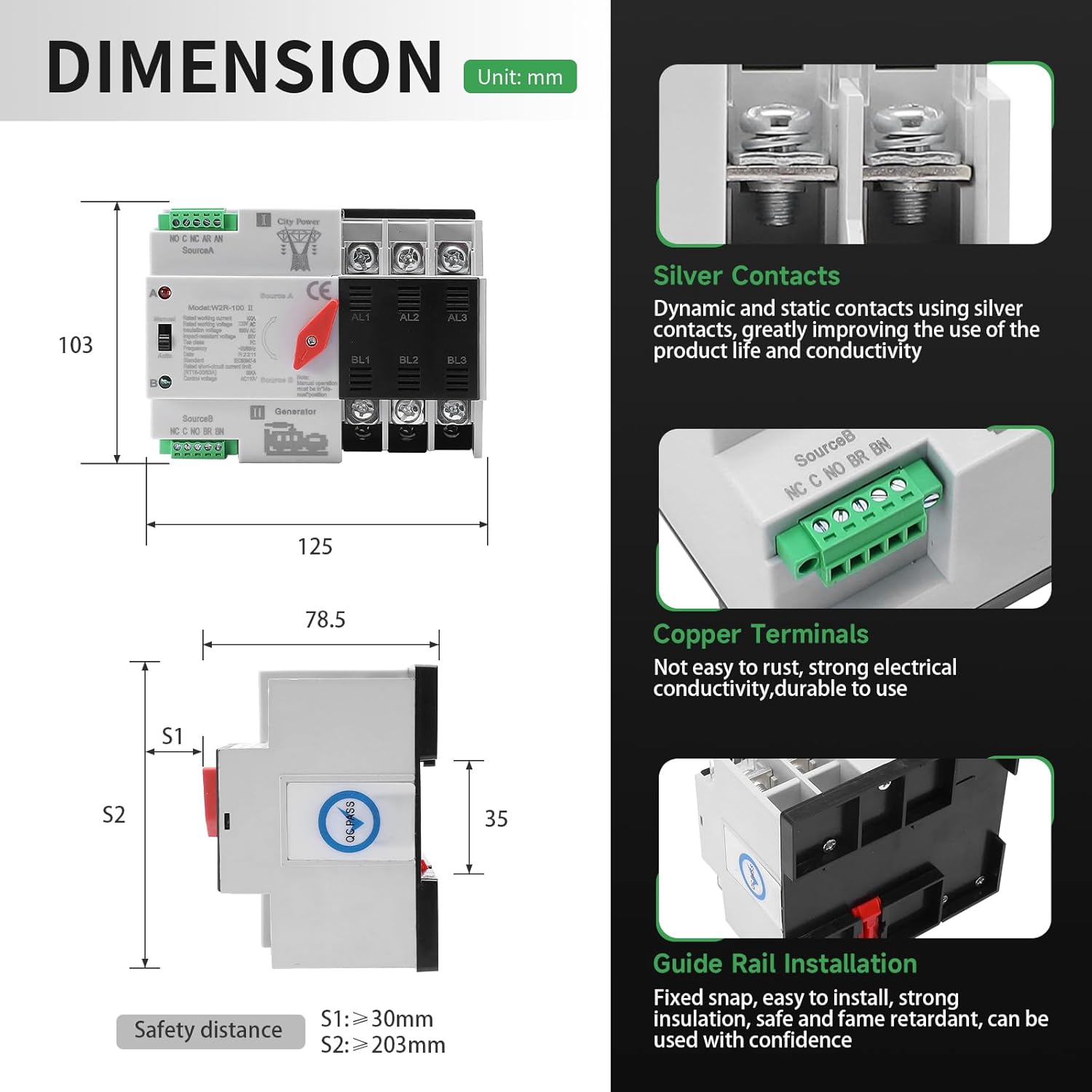

| Item Dimensions | 4 x 3.1 x 4.9 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 110 Volts (AC) |
| Specification Met | CCC, CE |
| Included Components | 1PCS*ATS W2R 3P 63A AC110V+4PCS* Accessory cable+1PCS*Instruction manual |
| Number of Positions | 3 |
| International Protection Rating | IP50 |
