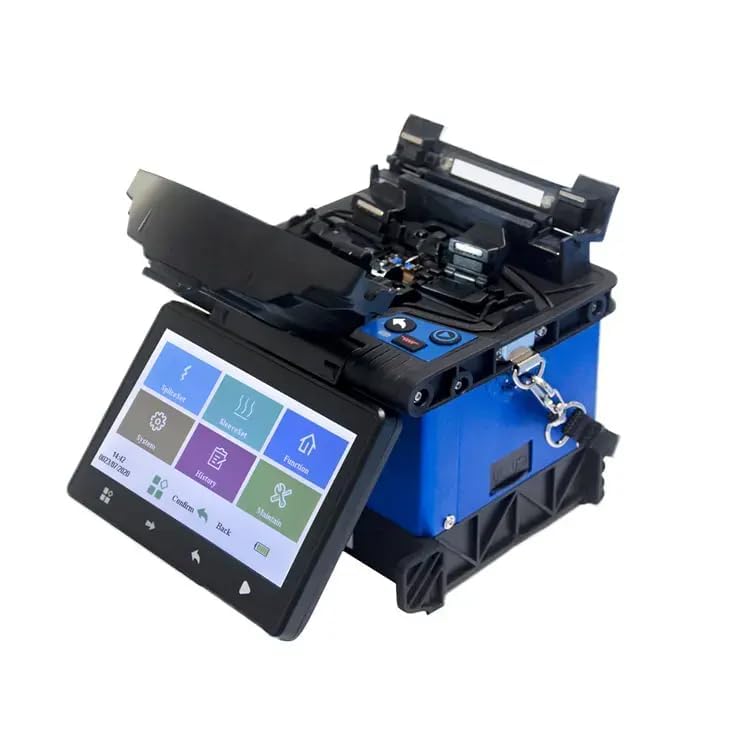

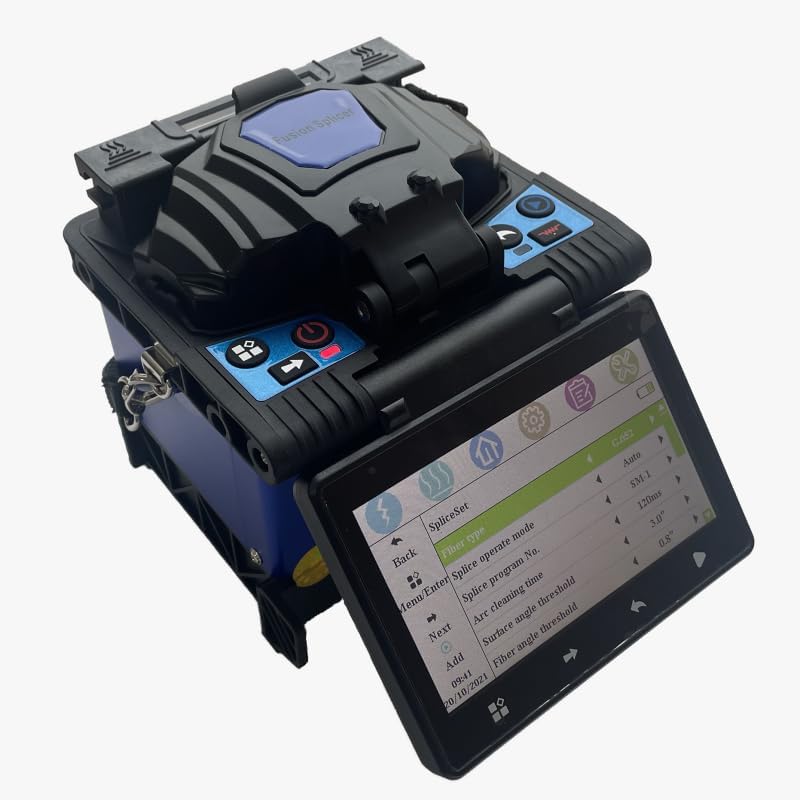

Single Core Fiber Fusion Splicer Optic Fiber Welding Splicing Equipment with Applicable Cladding Diameter 80-150μm Coating Diameter 100-1000μm LED Double White Light

Specification: Applicable Optical Fibers: SM(G.652)，MM(G.651)，NZ(G.655)，DS(G.653)，COS(G.654),BUI(G.657)，EDF Applicable Core Type: Single Core Applicable Fiber Diameter: Cladding diameter 80-150μm，Coating diameter 100～ 1000μm Splicing Mode Pre-store: 8 groups Customize: 792 groups Splicing Results Recording: 10000-group splicing records & splicing images recording Splicing Speed: 9 sec (Standard Mode）7s（Fast Mode） Alignment: Core to core alignment, Coat alignment Splicing Loss Average Splicing Loss: 0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZ) Return Loss: ≧60dB Splicing Loss Estimation: Exist Power Supply: Input 220V±10%、1.4A，50/60Hz output 13.5V/5A Battery: 11.1V Lithium battery，typically splicing/heating 260 times，charging time 3 h， 500 times rechargeable, 5200mAh Operation Environment: Altitudes 0～5000m,relative humidity 0～95%（No condensation）， temperature -20℃～55℃，maximum wind speed15m/s Storage Conditions: Relative humidity 0～95% (No condensation), temperature -40℃～80℃ Corrosiveness Resistance: The main device, components and their materials meet the requirements of GB/T 2423.54-2005 and are not vulnerable to the corrosiveness of fluid pollution. Weight: 1.19kg（Without battery)，1.53kg(With battery) Dimension: 146D×131W×152H(mm) Heating Shrinkable Tub Applicable Diameter: 2mm,3mm,4mm,6mm Applicable Length: 60mm，50mm，45mm，40mm，25mm，20mm Heating Time: 2mm tube（10-15S adjustable），4mm tube（14-19S adjustable）， 6mm tube（17-23S adjustable） Heating Temperature: 10-260℃（Customizable） Automatic Heating: Auto fiber recognition and heating after covered Others Display: 5 inches TFT true color HD LCD screen，support multi-language selection Magnification: X/Y:200 times，X/Y:400 times USB Port: USB2.0 Illumination: LED double white light

• Applicable Optical Fibers: SM(G.652)，MM(G.651)，NZ(G.655)，DS(G.653)，COS(G.654),BUI(G.657)，EDF
• Applicable Fiber Diameter: Cladding diameter 80-150μm，Coating diameter 100～ 1000μm
• Splicing Results Recording: 10000-group splicing records & splicing images recording
• Alignment: Core to core alignment, Coat alignment
• Operation Environment: Altitudes 0～5000m,relative humidity 0～95%（No condensation）, temperature -20℃～55℃，maximum wind speed15m/s
