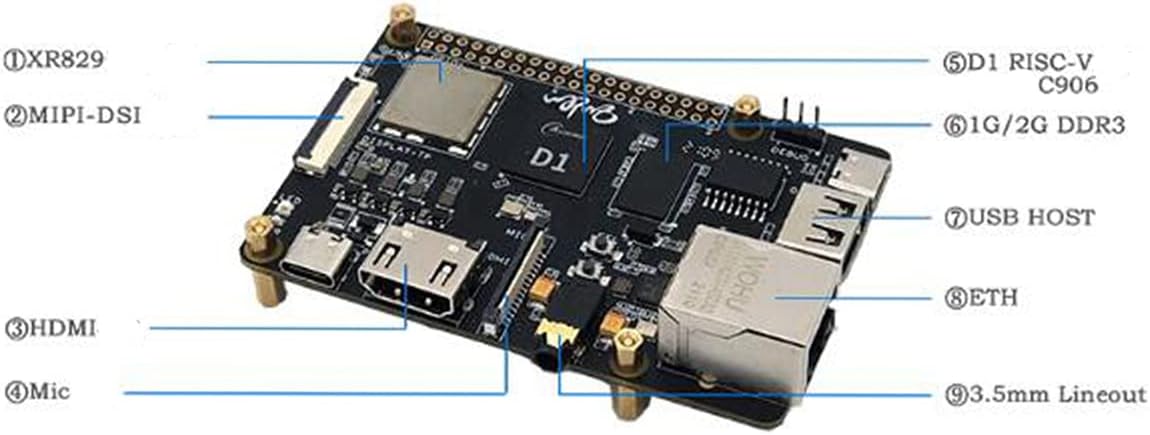

Sipeed Nezha Allwinner D1 64bit RISC-V AIoT Linux Single Board Computer with 2GB DDR3 RAM 256MB Nand Flash Onboard 2.4GHz WiFi4 BT Gigabit Ethernet for lOT Application Support Tina Debian RTOS

-Specification-Soc: Allwinner D1 single-core Xuantie c906 64-bit RISC-V processor@1.0 GHz with HiFi4 DSP,G2D 2D graphics accelerators.Memory:2GB DDR3 memoryStorage: 256MB SPI NAND flash ,MicroSD card slot. VideoDecoding:H.265 up to 1080p60 or 4Kp30,H.264 up to1080p60 or 4Kp24, MPEG-1/2/4, jpeg, VC1 up to 1080p60Audio: 35mm audio jack, digital audio output via HDMl , a connector for Microphone Array boardConnectivity: Gigabit Ethernet via RTL8211F PHY, 2.4GHz WIFi 4 & Bluetooth module via xR829 moduleUSB: 1X USB 2.0 host port , 1x USB Type-c OTG portportExpansion: 40-pin GPIO connectorDebugging: 4-pin UART header, USB ADB debugging supportedMisc: Power LED tri-color user LED , OK & FEL buttonsPower Supply: 5V / 2A via one of the two USB-C portsDimensions: 85x56 mm ( 6-layer PCB )-OS Support-Tina,Debian,Linux,RTOS-Package Content-1 x Sipeed Nezha 2GB Single Board Computer Standard Kit

• [RV64 Linux Platform] Nezha is based on Allwinner's newest RISC-V chip , D1@1.0GHz ( T-HeadXuanTie c906 core ) .with 2GByte DDR3 and 256MByte onboard Nand Flasht. lt has basic resources and environments that allow you to research RV64 features on itself , just like a desktop PC.
• [Allwinner D1 SoC] Allwinner D1 has XuanTie C906 64-bit RISC-V processor @ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators, Memory – 2GB DDR3 memory Storage – 256MB SPI NAND flash, MicroSD card slot.
• [Encoding] JPEG/MJPEG up to 1080p60,Audio – 3.5mm audio jack, digital audio output via HDMI, a connector for Microphone Array board,Connectivity – Gigabit Ethernet via RTL8211F PHY, 2.4GHz WiFi 4 & Bluetooth module via XR829 module.
• [lOT-friendly] Nezha Single Board Computer is not designed for heavy computation applications but designed forthe RV64 opensource community and loT applicationlt. lt is easily run withouta heatsink, and the temperature is below 50c, chip power consume <0 . 1A 5V.
• [Rich Peripherals] Nezha has most of the peripherals you need in loT applications :MIPI LCD ,HDMI ,USB ,ETH .SPI/ UART / lC/ PWM/ LEDC/ lS / GPIOs.You can build your projects easily and quickly .
• [Open-Source] Nezha has an open-source SDK thus that will allow us to port Debian Desk-top System to it ,and we can test many popular program environments on it: C/C++,Js , WASM, Rust ,Golang , Python , etc.
• [Wiki] Any after-sales problems, please contact us by click WayPonDEV store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".
