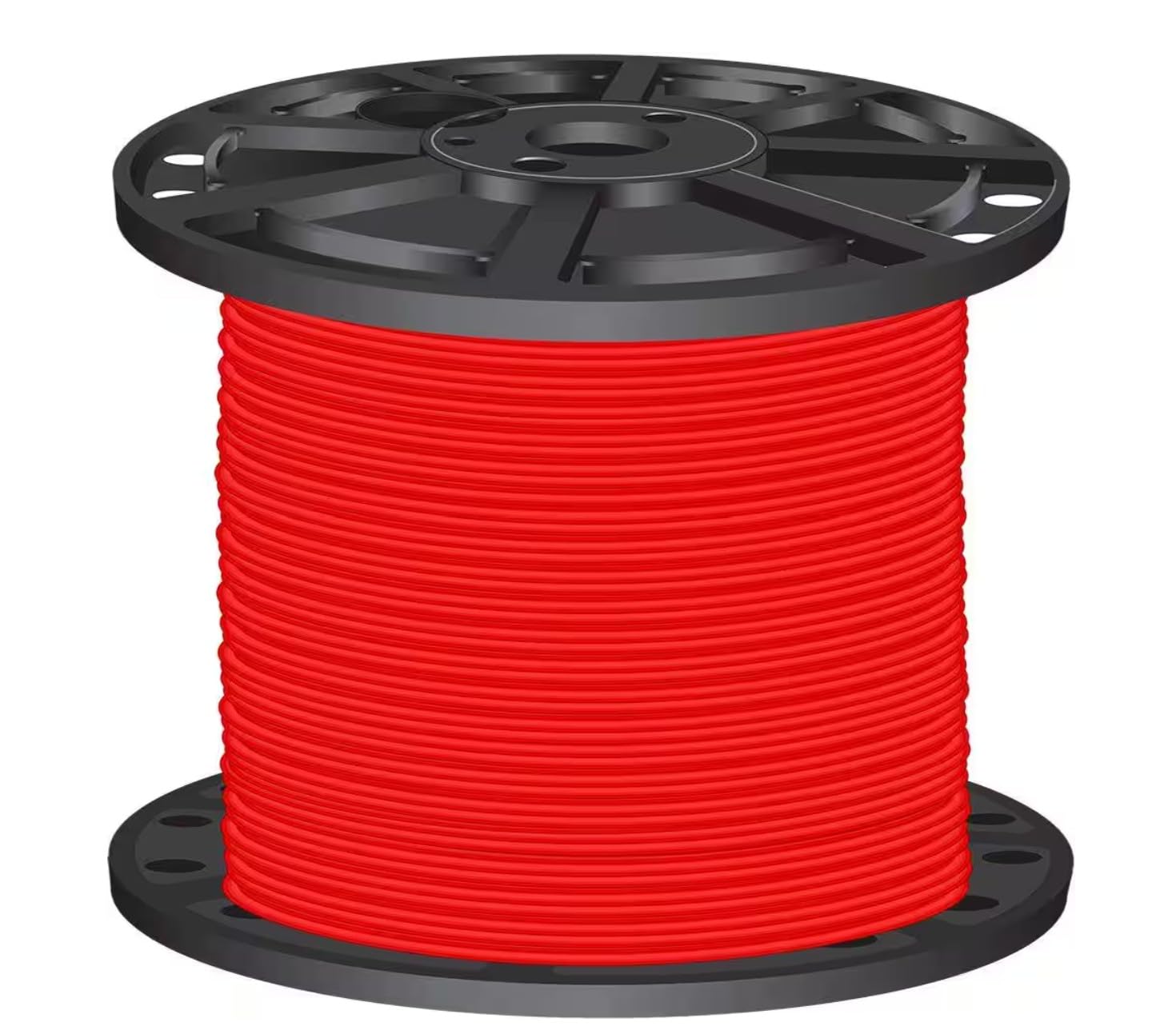

Southwire 20490902 SIMpull THHN/THWN-2, Red, Copper, 19-Strand, 8 AWG, 600V, 10000 FT

Southwire SIMpull THHN/THWN-2 copper conductors deliver reliable performance for commercial and industrial electrical applications. These versatile conductors are designed for installation in conduits and cable trays, serving essential roles in services, feeders, and branch circuits. Available in sizes ranging from 8 AWG to 1000 KCMIL, these red-colored conductors feature stranded construction for enhanced flexibility. The innovative design eliminates the need for pulling lubricant during installation, streamlining the process. With a conductor diameter of 0.143 inches and overall diameter of 0.217 inches for the 8 AWG size, these conductors offer precise specifications for detailed planning. The robust construction includes carefully measured insulation and jacket thicknesses, providing durability for long-term use. Suitable for 600-volt applications, these conductors are sunlight resistant in sizes 8 AWG and larger, while also offering gasoline and oil resistance. The stranded copper construction ensures optimal conductivity and flexibility for various installation requirements.

• VERSATILE APPLICATIONS: Southwire SIMpull THHN/THWN-2 copper conductors designed for conduit and cable trays in commercial or industrial applications with 600V rating.
• CONSTRUCTION FEATURES: 8 AWG wire with 19 strands, red insulation, and copper conductor diameter of 0.143 inches for optimal performance.
• DURABILITY RATINGS: Sunlight resistant, gasoline and oil resistant II rated, with VW-1 and FT-1 ratings across all sizes for enhanced protection.
• INSTALLATION ADVANTAGE: Designed for installation without pulling lubricant, featuring 31 mils insulation thickness and 6 mils jacket thickness.
• PHYSICAL SPECIFICATIONS: Approximate outer diameter of 0.217 inches with copper weight of 50 lbs per 1000 feet and total weight of 63 lbs per 1000 feet.
