Stainless Steel Digital Display Film Applicator, Adjustable Film Applicator, Film Width: 100mm, 150mm, 200mm, 300mm Optional/Measuring Range: 1-6000μm / Graduation Value: 1μm, for Paint

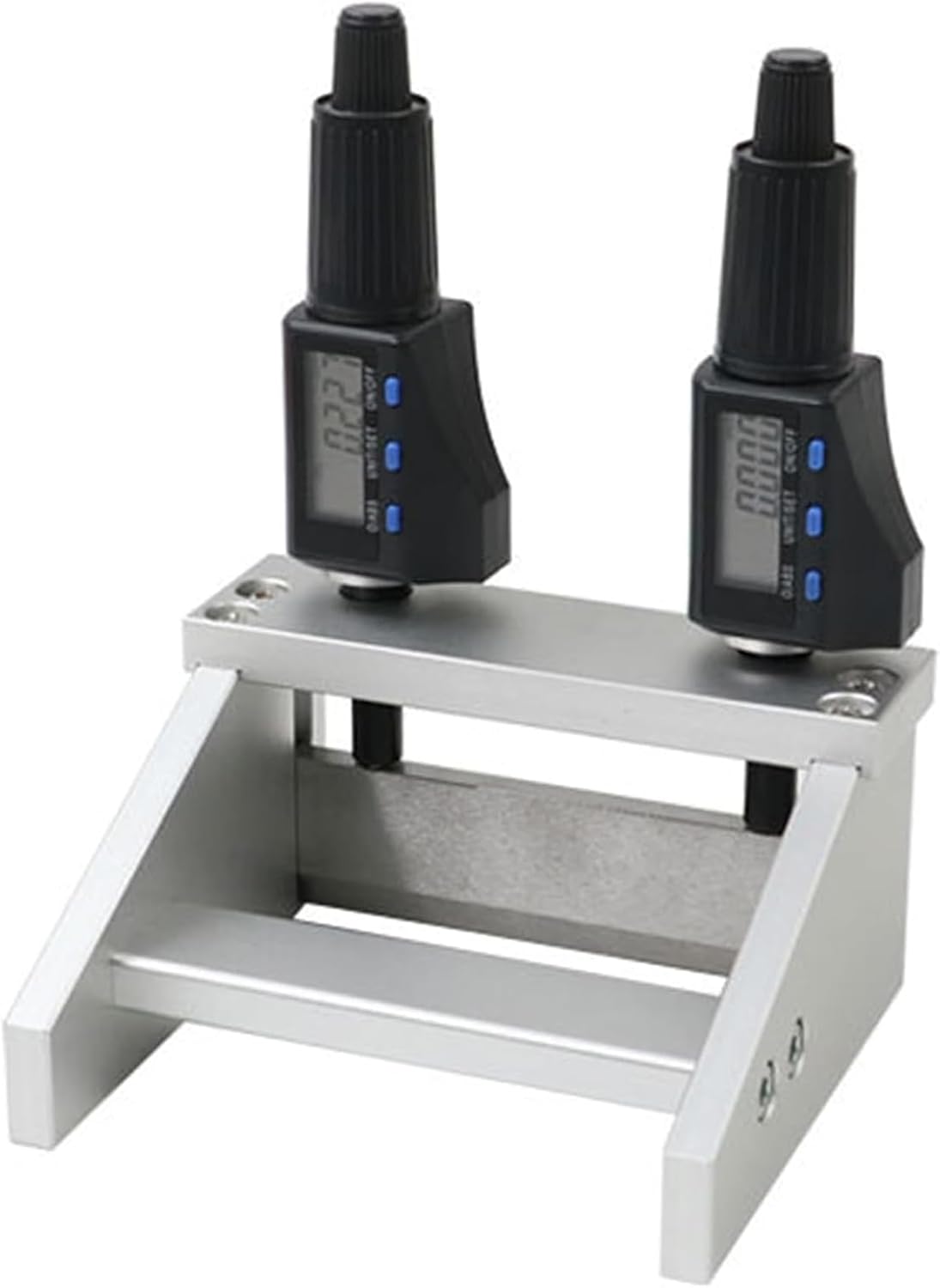

Product name: Digital film applicator Coating width: 100mm, 150mm, 200mm, 300mm optional Measuring range: 1-6000μm Graduation value: 1μm Frame material: aluminum alloy Advantage: minimum adjustment of film thickness by 1μm Scraper material: stainless steel Packing list: Digital film applicator*1

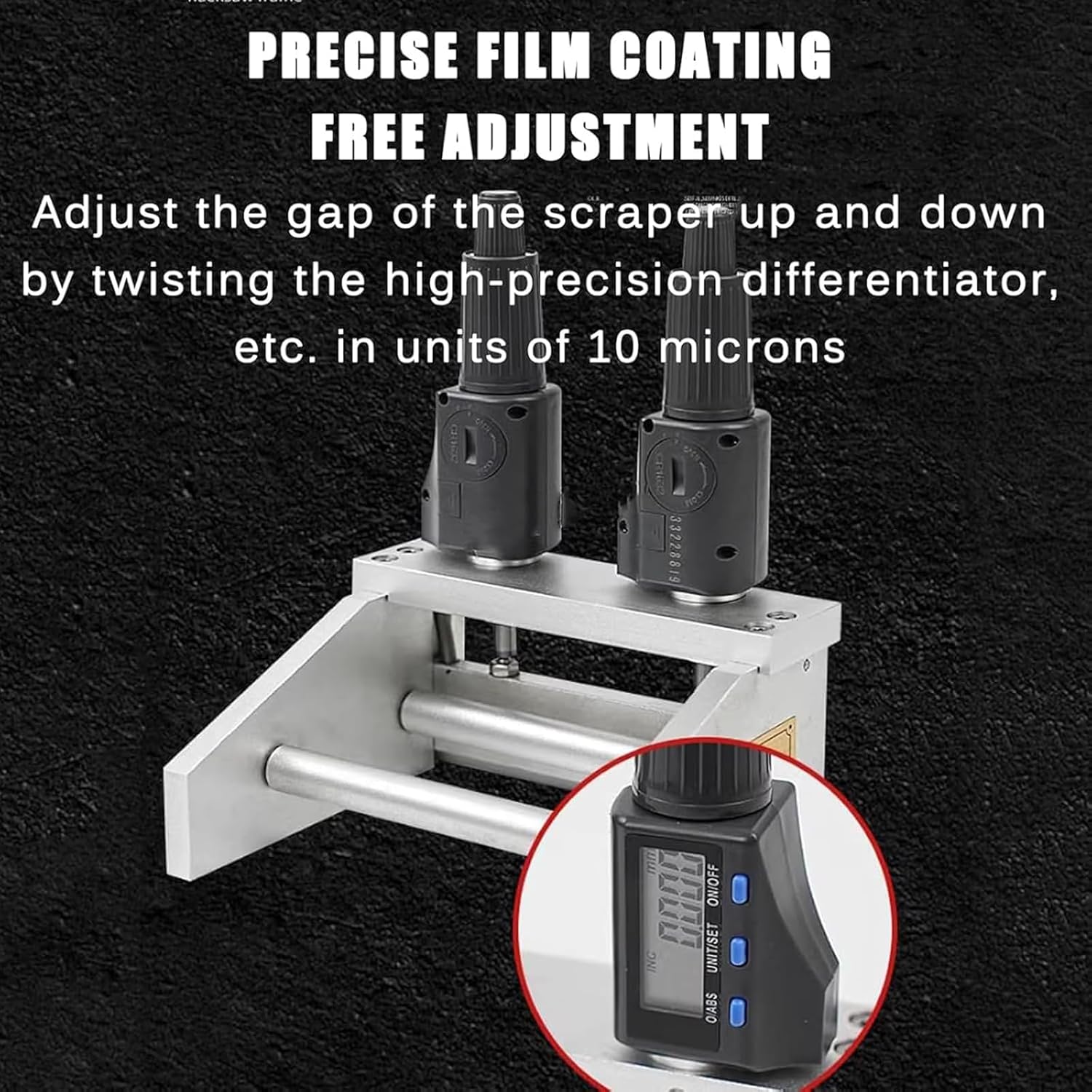

• Film applicator: used for the study of accurate evaluation of film thickness. By adjusting the 2 differentials on the coating machine, the scraper below can be adjusted to control the gap, that is, the final coating thickness.
• Design: Effective film width: 100mm/150mm/200mm (optional), film thickness range: 0-6000μm, during the film coating process, the blade gap is adjusted every 10 microns.
• Digital display device: The spring rebound principle is used to drive the scraper to apply the film more accurately, which is easy to operate and easy to clean. Spring scraper, high precision, corrosion resistance.
• Material: Made of aluminum alloy frame and stainless steel scraper, it is sturdy and easy to use, not easy to rust and deform, ensuring a long service life, so that you can use it for a long time.
• Application: This product is mainly used to apply a wet film of a specified thickness to a specimen to determine the covering power, color of the specimen or prepare a sample plate.
